The IQ3 Perform range offers an actuator that prioritises the essentials without compromising on quality.
Part of our trusted IQ range, the IQ3 Perform is all about delivering reliability and performance as a cost-effective option for the water industry.
These robust multi-turn and part-turn electric valve actuators offer enhanced performance, build quality, and value. Detailed trend analysis, diagnostics and data logs are downloadable via the Bluetooth® Setting Tool Pro.
- Continuous position tracking at all times, even without power
- On power loss, the graphical interface, remote indication, and data logger are maintained and accessible
- Oil bath lubrication provides extended life and the ability to mount in any orientation
- Increased protection by using independent torque and position sensing
- Wide range of adjustable speeds available
- Easy installation and maintenance using detachable thrust bases
- Water ingress protection, not reliant on terminal cover or cable gland sealing – double-sealed to IP66/68 7 m for 72 hours
- Safe, motor-independent, handwheel operation available at all times
- Control and commissioning via Bluetooth® Setting Tool Pro handset (BTST) or local control knobs
- Field-upgradeable and configurable control and indication options
- Rapid and secure commissioning and configuration even without power
- Detailed trend analysis and diagnostic data are available for asset management

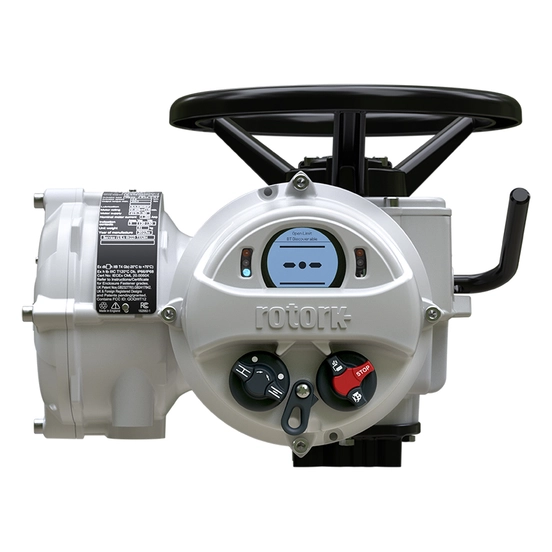

IQ (3) - multi-turn electric actuator(18 - 192 rpm / 50 Hz)
SUMMARY OF MECHANICAL AND PERFORMANCE DATA:
Available sizes: IQ10 - IQ95 , mounted directly to each valve application, by 34- 3 000 Nm output torque range
By means of possible assemblies combinating with gearboxes for required torque transformation
multi-turn output (e.g.: gate valve, globe valve etc.) up to 43 000 Nm
quarter-turn output (e.g.: ball valve ) up to 1 000 000 Nm
For on&off applications available up to 60 starts per hour duty cycle
On&Off actuators: S2-15min/ S3-25% (25% of rated nominal torque)
absolute position sensing by redundant sensor equipment
Mounting flanges by national standards - either directly mounted to valve or an inermediate (2nd stage) gearbox: Sizes- F10-F30 acc. to ISO 5211
Enhanced output dirves, available types B4; B3; B1; A; Z3
Ambient Temperature:
WT - -30 .. +70 °C
Further certificates under usage in international regions (e.g.: EAC; CSA; IEC 60529 etc.)
Power Supply:
1 phase
3 phase
DC - details in technical catalouges
Control & Indication (feedback):
local control by selector knobs: Open/Close and Local/Stop/Remote
local feedback on dual stacked LCD screen- configuration, diagnostic, alarm warnings, etc.. -supplementary luminating LED indicators
remote control: inside 24 VDC derived and over hardwired contacts (proportional analouge control by 4..20 mA as an option), or derived from external equipment by customer
Indication: over 1 pc of monitor relay + 4 pcs - configurable volt-free latching relay contacts/ NO or NC (further 4 pcs of relay switches upon requuest)
Further features:
Bluetooth and preused Infrared sign for non-intrusive settings and maintenance
Automatic phase rotation correction
Self-maintain either in local or remote control mode
Manual Override in case of power or signal loss
Standard Limit Switches inside the actuator
Power supply connection active, ESD active, etc.
Additional Cable glands and cable entry plugs
Foundation Fieldbus-further Network System Control options by network Interface Cards
Pakscan
Modbus
Profibus
Foundation Fieldbus
HART
Lubricants:
SAE80EP - std.: for temperature 30 .. + 70 °C
MOBIL SHC624: for temperature -50..+ 70 °C
Hydra Lube GB Heavy for temperature -20.. +70 °C-ra (optional food grade usage)
Painting and corrosion protection:
For IQmk3; IQmk2 & IQT mk3
Coatings for protection acc.to ISO 12944-2 (C1..C4/ C5-M, C-I classes)
Basic procedure and used top-colour - D1036 (Interpon) BS4800 00-A-05 Light gloss Grey
Motor:
IQmk3: 3-phase squirrel cage motor for on&off (Class A&B application incorporating thermostat protection; Class F - insulated
IQTmk3: Class-H insulated permanent magnet 24 VDC motor incorporating thermostat protection for on&off-inching (Class A&B application)
